Kadee Skip to the beginning of the images gallery #714 HOn3 Scale Split Shank Plastic Couplers - Black
Scale:
Ships in 3–5 business days (includes distributor processing).
Kadee Skip to the beginning of the images gallery #714 HOn3 Scale Split Shank Plastic Couplers - Black is backordered and will ship as soon as it is back in stock.
Kadee Skip to the beginning of the images gallery #714 HOn3 Scale S...

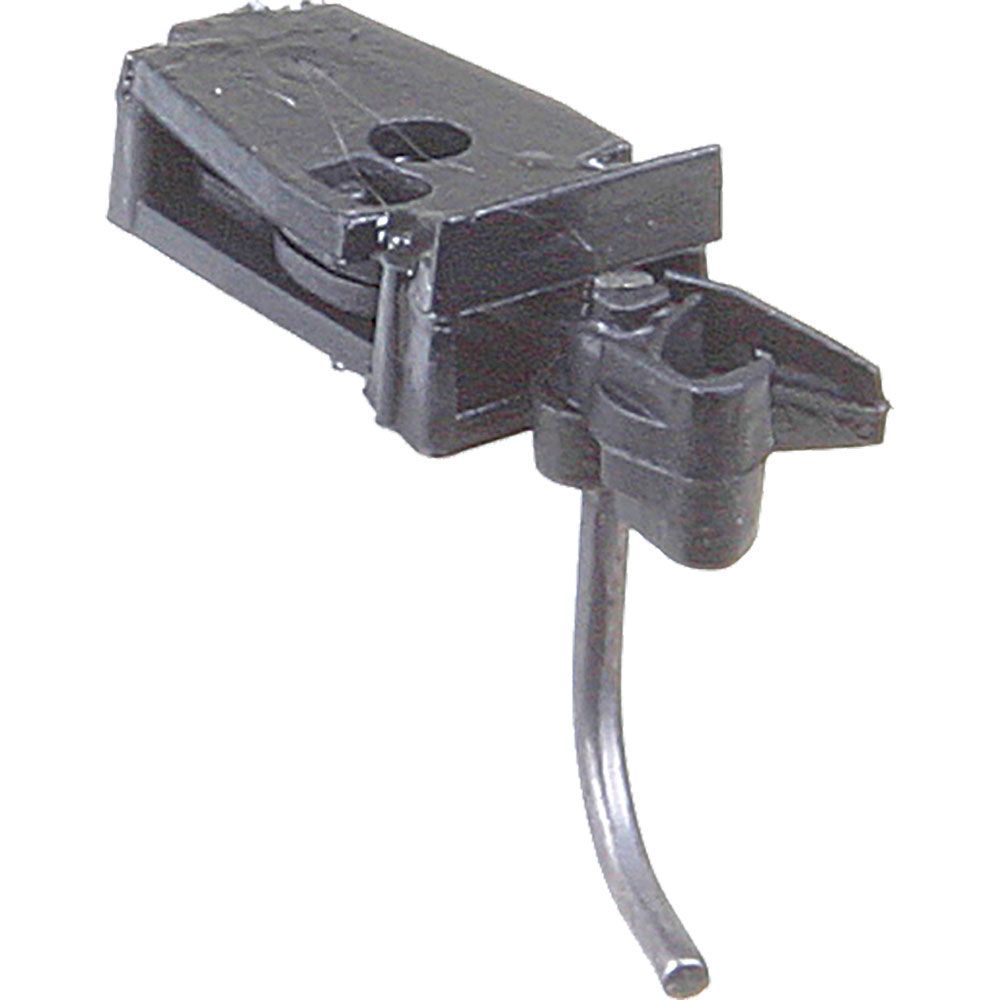

#714 Split Shank Plastic Couplers - HOn3 Coupler - Black
 |
 |
The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.
This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #714 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.
(The #702 Coupler Assembly Fixture can be used to ease assembly)
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Also adaptable to TT-Scale
Unassembled Kit
Black colored
Two pair per package
UPC: 765484007142
Made in the U.S.A.
HOn3-Scale
0-48 or 0-80 screws are the most commonly used screws.
Screw length will very depending on the mounting situation.

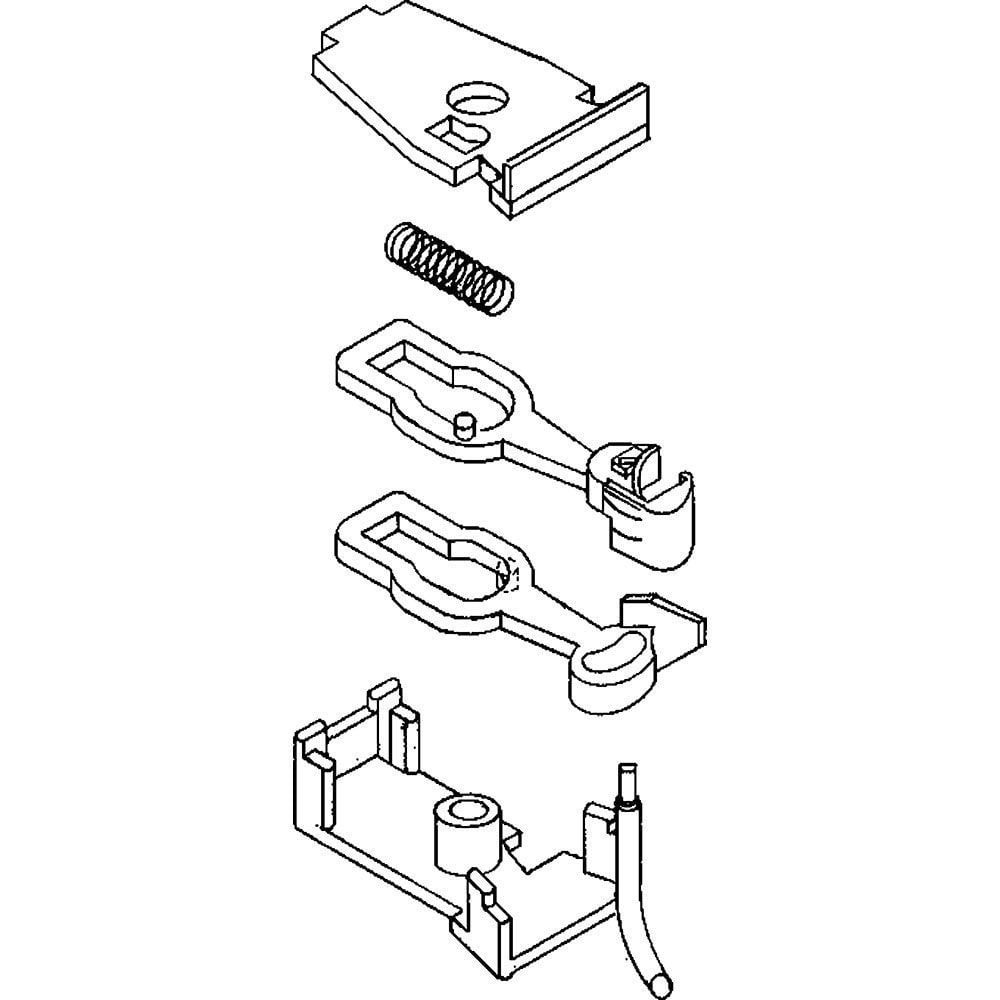

Package Includes:
- (2) Pair Unassembled Split Shank Couplers
- (2) Pair Unassembled Gearboxes & Lids
- (5) Each #714 Trip Pins
- (6) Each #636 Centering Springs
- (4) Each #402 Self Tapping Screws 0-48 x 1/4"
| Material | - Plastic |

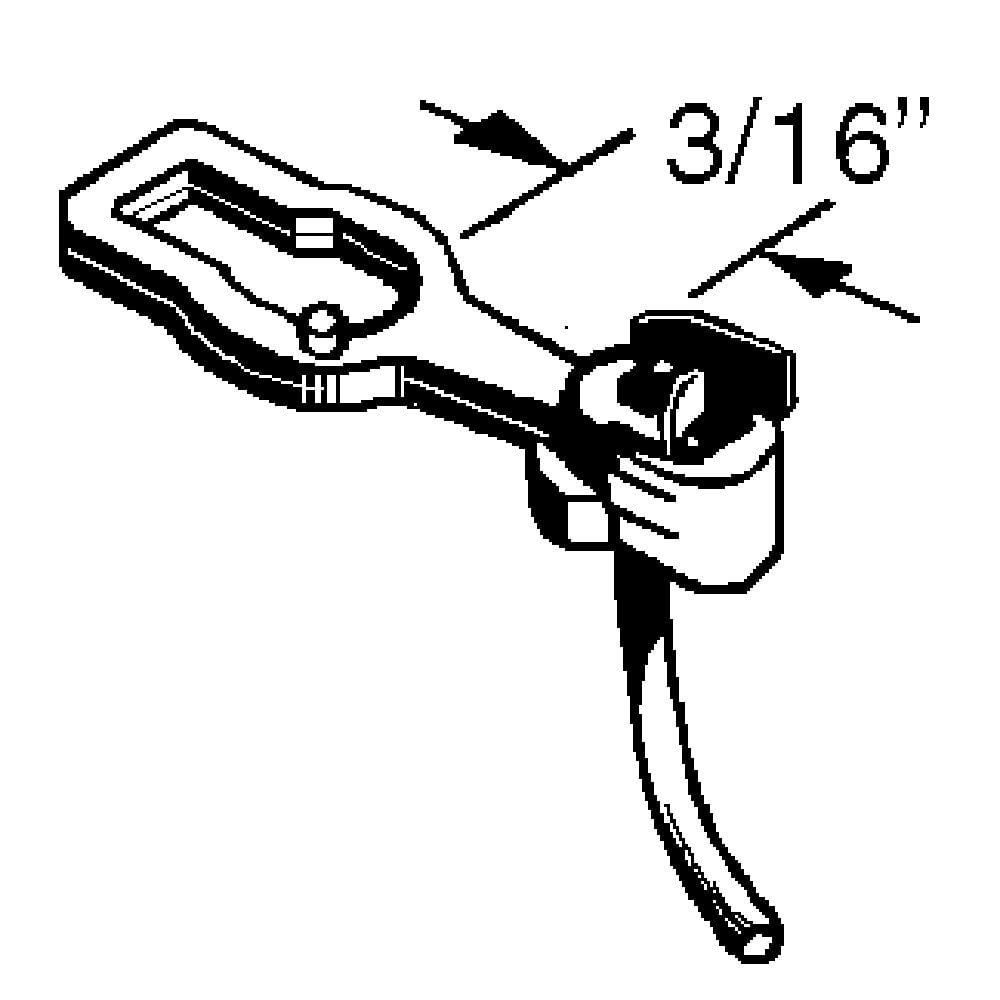

| Shank Length | - (3/16") |
| Coupler Offset | - Centerset |
| Material | - Insulated Plastic |

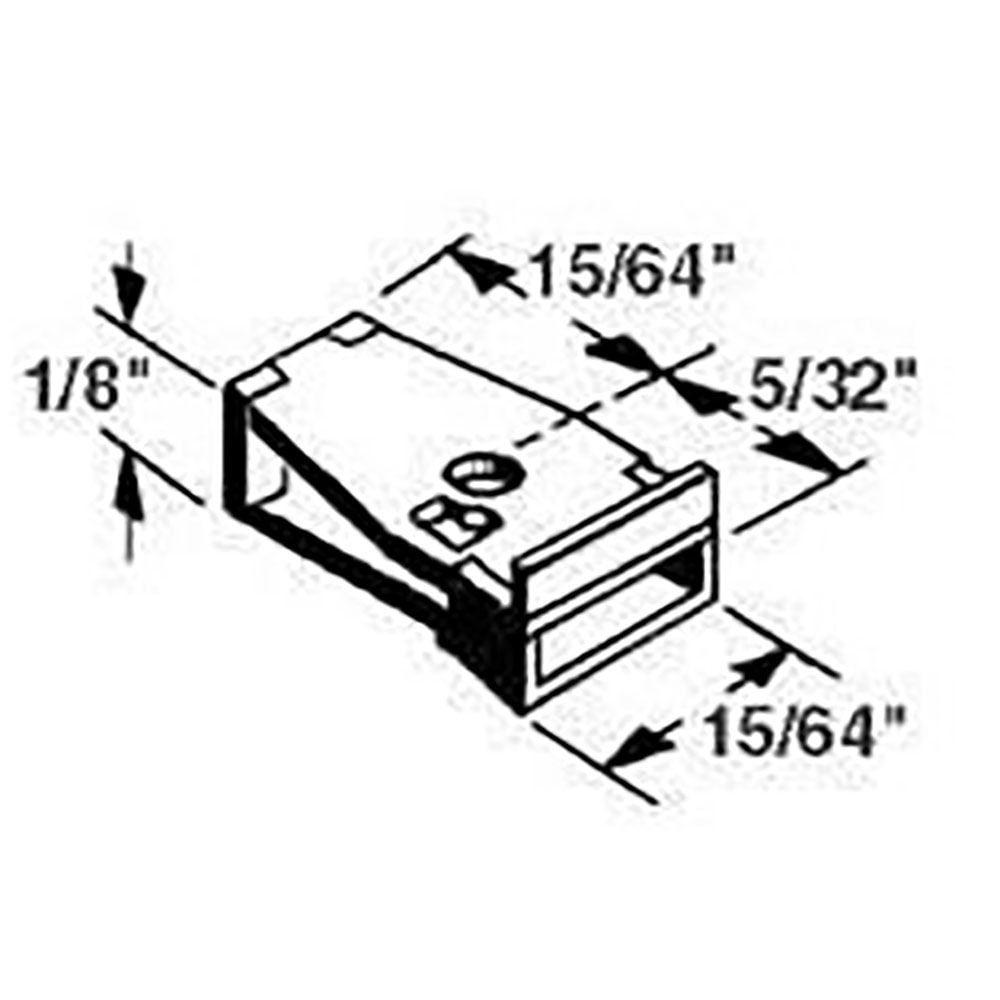

| Dimensions | - 27/64"L x 15/64"W x 1/8"H |

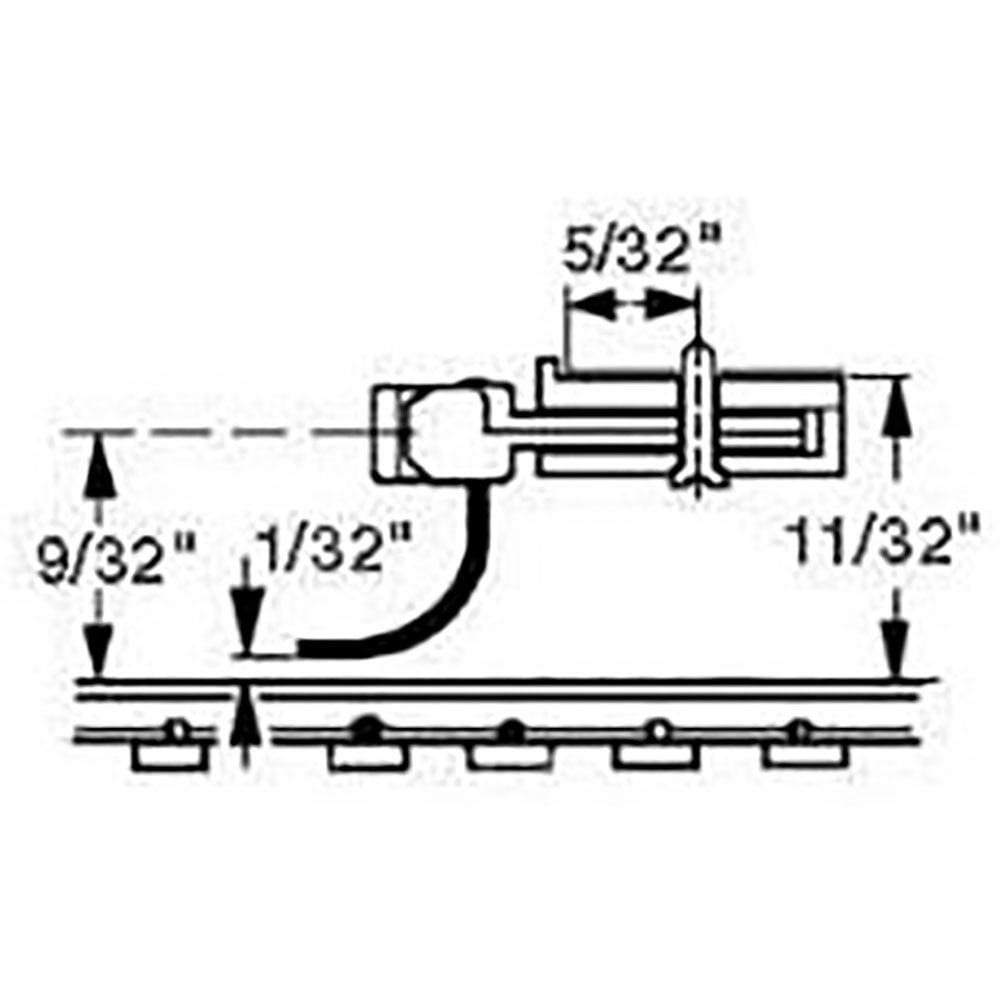

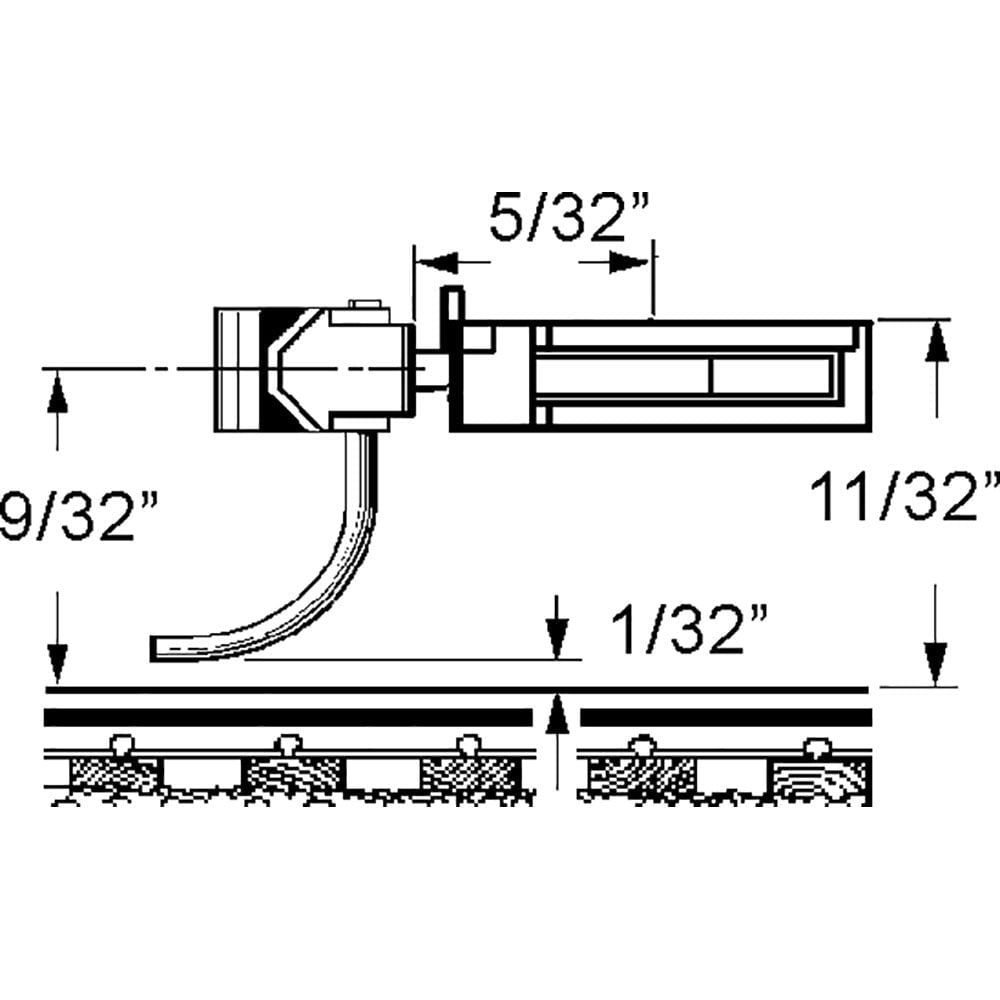

| Mounting Height | - 11/32" |
| Centerline | - 9/32" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 0-48 Screw. (Screw length will vary) no less then 1/4" length. |
Recommended Tools:
Distributor must purchase in bundles of 6
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
