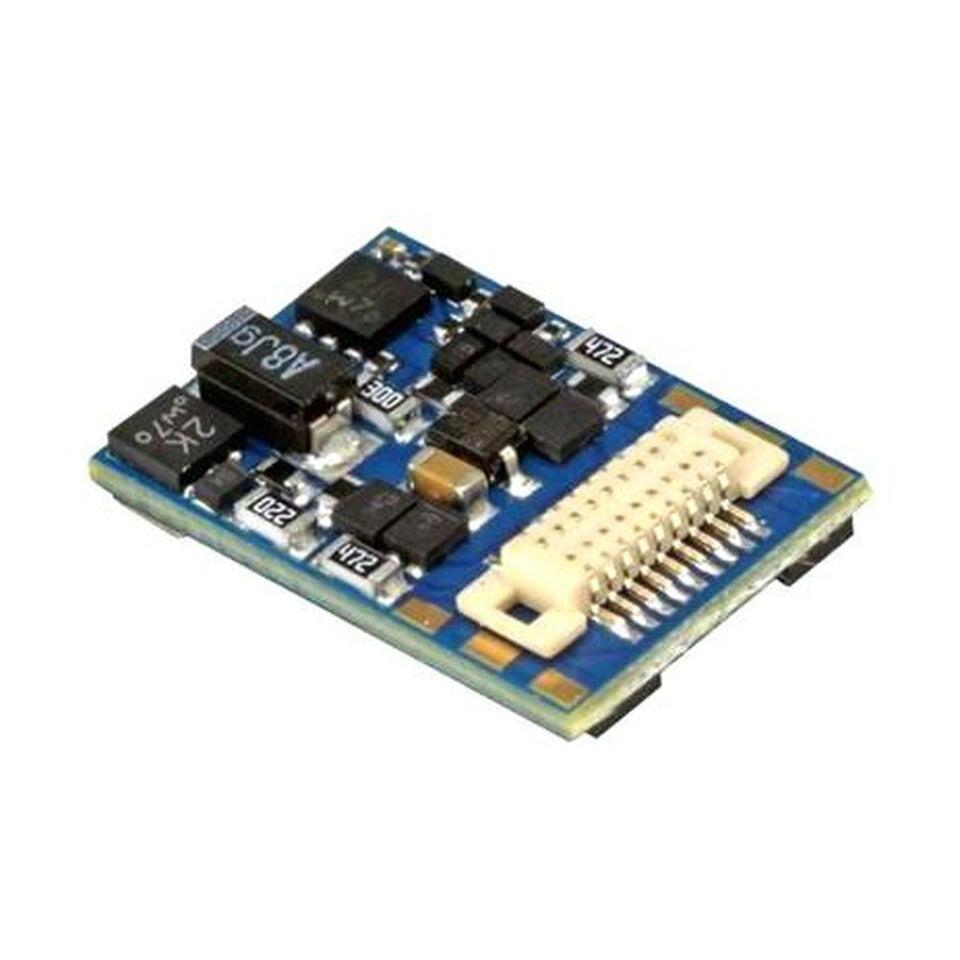

ESU 59118 LokPilot 5 Fx Micro DCC/MM/SX Function-Only Decoder
ESU | SKU:
ESU59118
Scale:
Regular price
$32.99
Unit price
Shipping calculated at checkout.
Ships in 3–5 business days (includes distributor processing).
ESU 59118 LokPilot 5 Fx Micro DCC/MM/SX Function-Only Decoder is backordered and will ship as soon as it is back in stock.
ESU 59118 LokPilot 5 Fx Micro DCC/MM/SX Function-Only Decoder
Regular price
$32.99
Unit price
LokPilot 5 Fx Micro Multi-protocol (DCC/MM/SX/M4) Function-Only Decoder - NEM662 Next18 Integral Connector
Decoder Specifications:
Size: 13.0 mm x 9.2 mm x 2.9 mm (0.51 in x 0.36 in x 0.11 in)
Interface: NEM662 Next18 Integral Connector
Motor Rating: NA - Function-Only
BEMF: NA
Functions: 6 amplified outputs for special functions, 2 Logic-level outputs or Servo Outputs (total: Up to 8 outputs)
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix
Additional Features:
Updatable with ESU-LokProgrammer
Connection interface for RC servos and SUSI modules
Optional optional PowerPack storage capacitor connections
Decoder Specifications:
Size: 13.0 mm x 9.2 mm x 2.9 mm (0.51 in x 0.36 in x 0.11 in)
Interface: NEM662 Next18 Integral Connector
Motor Rating: NA - Function-Only
BEMF: NA
Functions: 6 amplified outputs for special functions, 2 Logic-level outputs or Servo Outputs (total: Up to 8 outputs)
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix
Additional Features:
Updatable with ESU-LokProgrammer
Connection interface for RC servos and SUSI modules
Optional optional PowerPack storage capacitor connections
