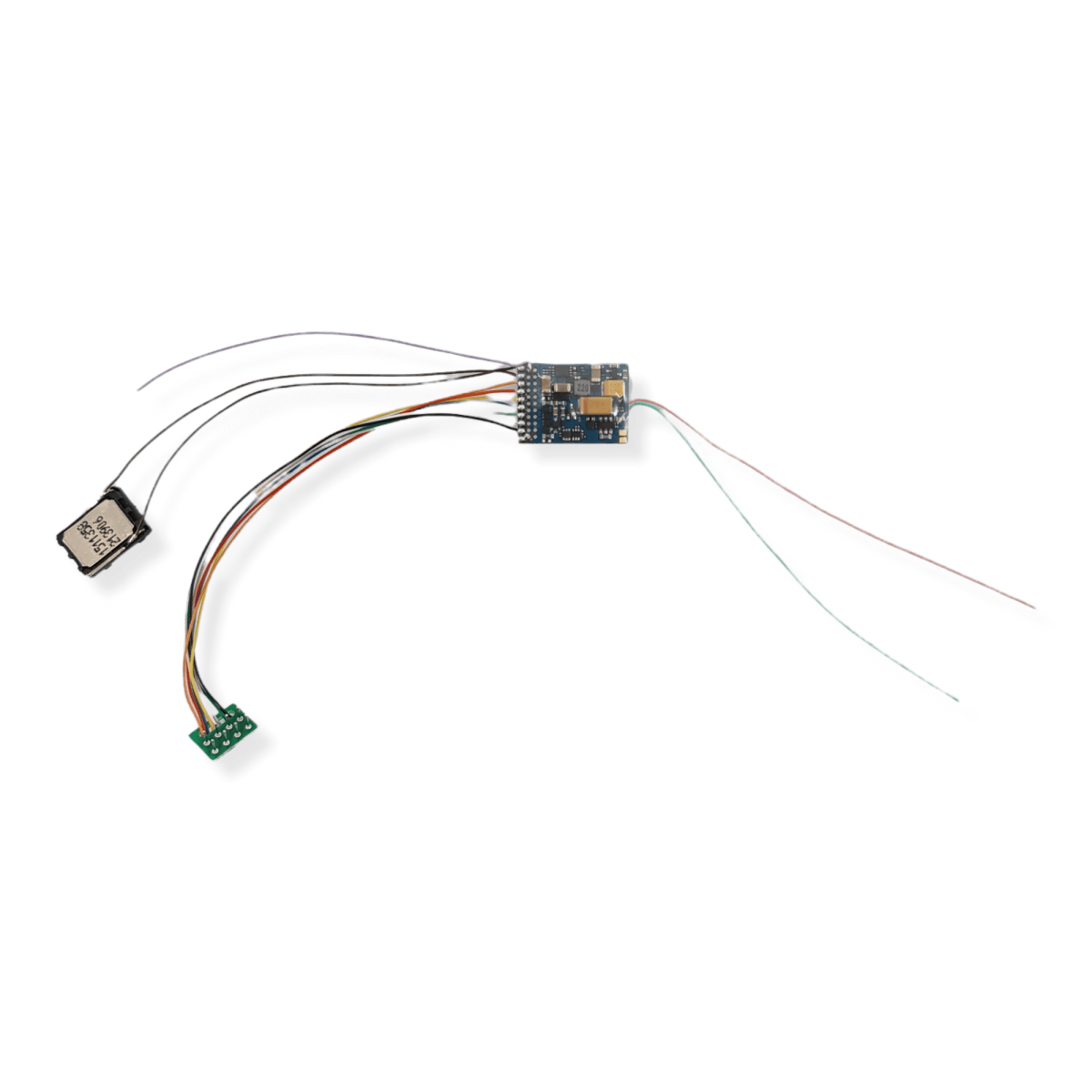

ESU 58210 LokSound 5 Fx DCC/MM/SX/M4 Sound Decoder 8-Pin NEM652
Scale:
Ships in 3–5 business days (includes distributor processing).
ESU 58210 LokSound 5 Fx DCC/MM/SX/M4 Sound Decoder 8-Pin NEM652 is backordered and will ship as soon as it is back in stock.
ESU 58210 LokSound 5 Fx DCC/MM/SX/M4 Sound Decoder 8-Pin NEM652
LokSound 5 FX Standard Multi-protocol (MM/DCC/SX) Function-Only Sound Decoder - NEM652 8-Pin Wired Plug
Decoder Specifications:
Size: 21.5 mm x 15.5 mm x 6.5 mm (0.85 in x 0.61 in x 0.26 in)
Connection: NEM652 8-pin Wired Plug
Motor Rating: NA - Function and Sound only
BEMF: NA
Functions: Up to 12 amplified outputs for special functions (total: Up to 15 outputs)
Sound:
32-bit processor
Digital class "D" amplifier with up to 13 W power
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 - 32 Ohm
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes 11x15 mm "sugar cube" loudspeakers with customizable sound capsule set
Speaker is not soldered to the decoder and comes with a modular enclosure.
