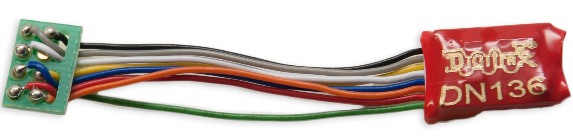

Digitrax 5077 DN136PS 1 Amp Mobile Decoder W/Short 8 pin Harness, N/HO Scale

Fits Many N/HO Locomotives with 8 pin Medium Socket

• Size: .55 x .404 x .2

  13.9mm x 10.3mm x 5 mm
• N/HO Scale
• Digitrax Easy Connect 8 Pin Harness
• 1.0 Amp/1.5 Amps Peak
• 3 FX3 Functions, 0.5 Amp

• FX³Function
  outputs for prototypical lighting effects and on/off control:
  Constant Brightness Lightingwith
  directional or independent control.
  Optimized selectable LED or incandescent lamp operation
  Realistic Effectslike
  Ditch lights, Mars lights, strobes, and many more
  Configurable Pulse Functionavailable
  on all function outputs.
  FX³& Standard
  Function Qualifiersoperate
  functions based on direction,

  F0 on or off, direction and F0, and whether loco is moving.
  Function Mappingfor
  custom function setup.
  Master Light Switchturns
  off all lights & functions with one keystroke.
  Advanced Consist Function Controls.

• Digitrax LocoMotion^{ÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÂ ®}System-Your
  locomotives look like the real thing.

  The Digitrax LocoMotion System makes them run like the real thing, too!
  Scaleable Speed Stabilization (Back EMF)with
  simple setup & 256 level resolution.
  Torque Compensation.
  128 Speed Stepoperation
  (14 or 28 steps can also be used).
  Momentumwith
  acceleration and deceleration.
  Normal Direction of Travelis
  user selectable.
  Switching Speedfeature
  for easier and faster access to yard speeds.
  3 Step Speed Tablesset
  start, mid and max voltage for custom control.
  28 Step Speed Tableswith
  256 level resolution for precise control.

• Program CVs using any Digitrax Compatible Control system without havingto
  buy any extra equipment.
• Digitrax Easy Connect 8 Pin Plug to 8 pin medium plug for Track, Motor and
  Function Control.
• 2 Digit and 4 Digit Addressing.
• Basic, Advanced & UniVersal Consisting.
• SuperSonic motor drive for silent operation.
• Direct mode programming.
• Decoder Reset CV with or without speed table reset.
• Transponder Equipped ready for transponding on your Layout.
• Motor Isolation Protection helps prevent damage to your decoder.
• Automatic Analog Mode Conversion when running on DC layout.
• Decoder Lock for individual programming of multiple decoders in one loco.
• Digitrax No Worries Warranty.

Specifications
