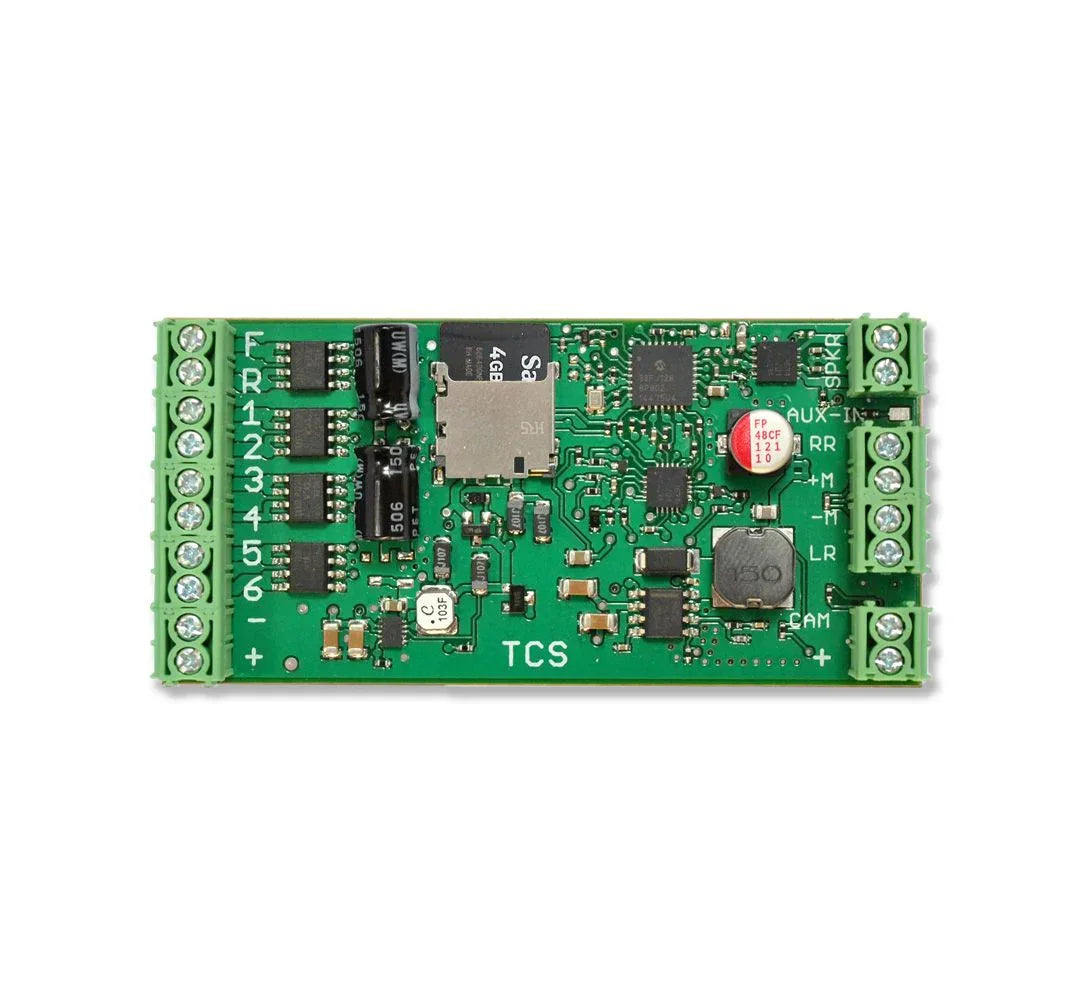

TCS 1605 WOW501-Diesel Large Scale Sound Decoder

The WOW501 is a universal, 5 Amp sound decoder for large-scale locomotives. The WOW501 includes Keep Alive® on-board for stutter-free operation. Function 5 and 6 may be programmed to control a smoke unit with a coil and fan. By programming CV58 with a value of 9, the smoke unit will react to the prime mover notch.

• HD-Quality Sound: TCS=WCS (TCS=World Class Sound). Best sound on the market. 16 Bits of resolution at 44.1kHz sample rate.
• Keep-Alive®: Included on-board for smooth, stutter-free operation.
• Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
• Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
• Variable Momentum: Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
• Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
• Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible: Fully compatible with Airwire™ operation.
• Audio Assist®: TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!
• User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
• Throttle Modes: Choose from multiple throttle modes to meet your operating needs.
• Proto Notch™: A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
